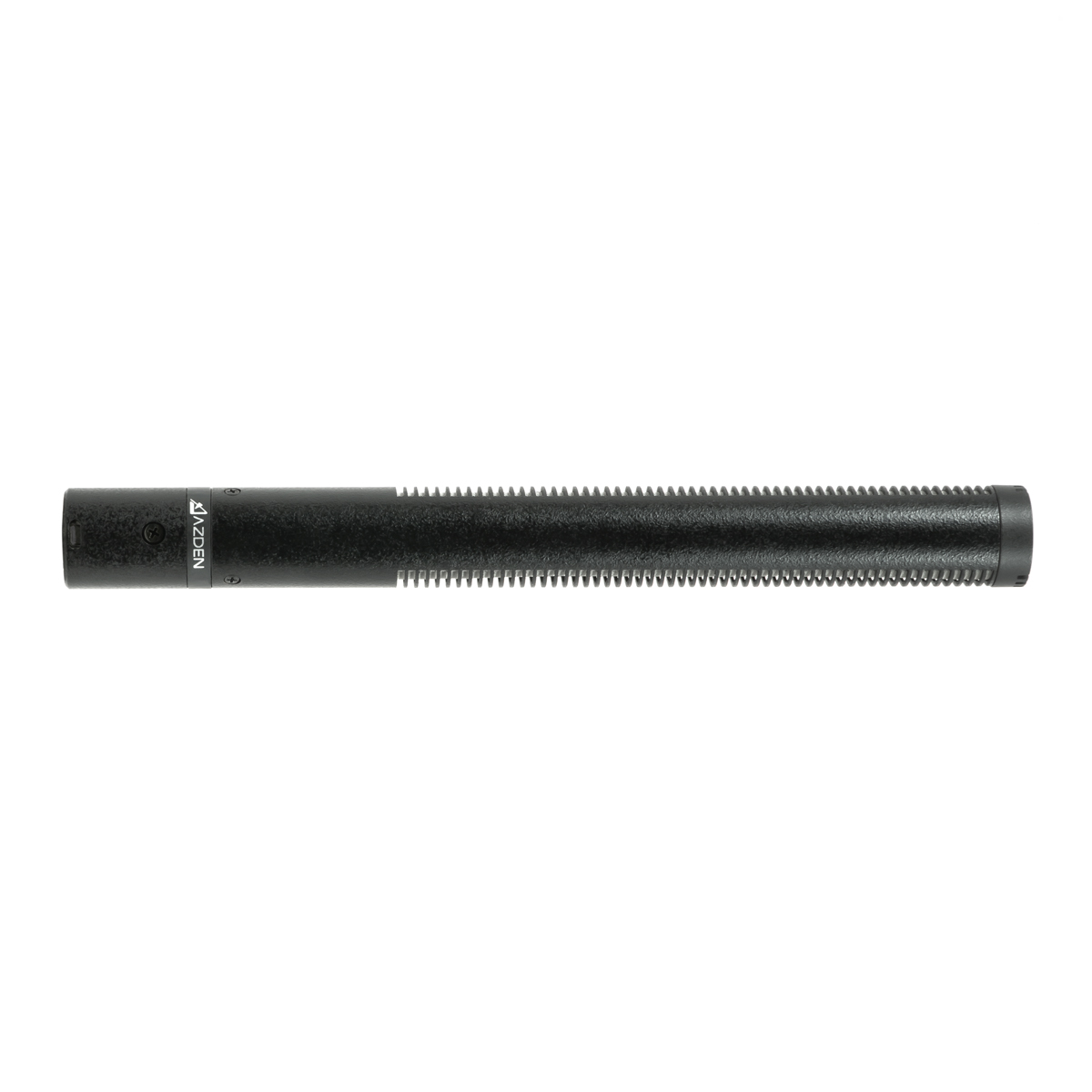

SGM-3416 Broadcast Spec Professional Shotgun Microphone

Prev

next

Feature

The SGM-3416 and 3416L are broadcast-spec high quality shotgun microphones. Designed for video and audio professionals, the super-directional electret condenser microphones offer wide frequency response and low noise. Each microphone is tested before leaving the factory and comes with its own frequency response chart. External phantom power between 11 and 52 VDC is required to operate the microphones. The microphone barrel is die cast metal and provides superior performance over standard stamped aluminum. A custom carrying case, flocked foam windscreen and shock-mount microphone holder are included.

Specification

Frequency Response 30 - 20,000 Hz
Sensitivity Super Cardioid -33dB Re: 1v/PA
Impedance 1.2k Ohms at 1kHz
Max.Spl Input Level 130dB
Signal To Noise Ratio 82dB
Dynamic Range 98dB
Power Phantom 11-52VDC
Dimensions φ19 x 180 mm
Weight 125g
Supplied Accessories Shock mount holder (SMH-4), Windscreen (ASP-23201), Carrying Case
In The Box ・Custom Carrying Case
・Flocked Foam Windscreen
・Shock-Mount Holder
・Manual

Technical Data

Optional Accessories


ASP-22101
Wind Jammer for SGM-3416

ASP-23201
Wind Screen for SGM-3416

ASP-22601
Mic Holder

SMH-4
Shock Mount Holder
