FMX-22 2 Channel Portable Mixer
Feature

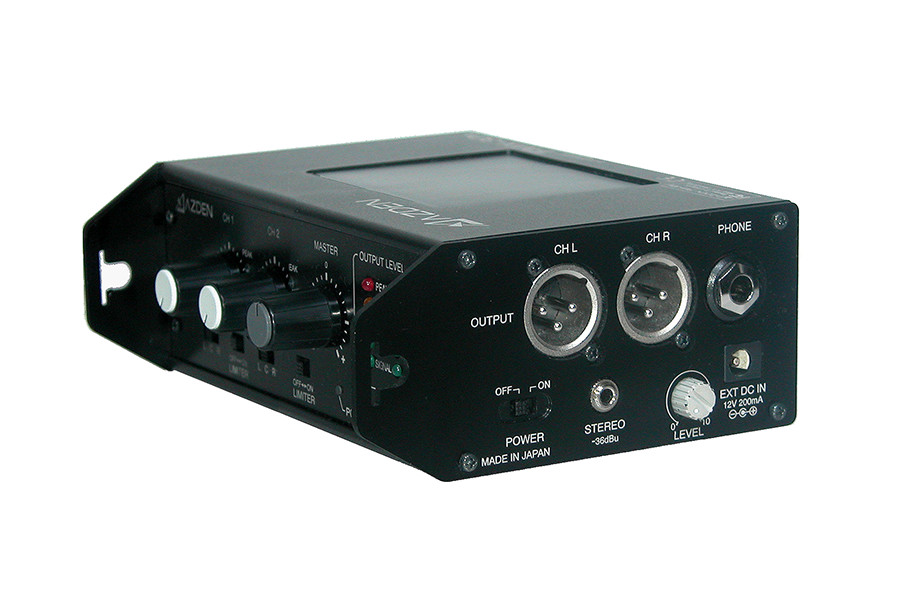

New and improved, the FMX-22 now uses the same circuit topology as the more expensive Azden mixers. With improved signal to noise ratio and wider frequency response the new FMX-22 is designed for the demanding needs of Professional Videographers. The small, all metal, battery operated (4-“AA”) mixer can be attached directly to any flat surface with supplied hook-and-loop fastener. The FMX-22 has the following features: 2 XLR microphone inputs each with 2 input settings, 2 input level controls, master level control, switchable phantom power and limiters for each input, channel-addressable (L-C-R) Stereo XLR and mini outputs, 5-step LED array for easy signal monitoring, 12V DC input for external power (optional BC-27 power supply), and a 1/4″ monitor headphone jack with level control.Specification
| Frequency Response | Main and Unbalanced Output: 20-20,000Hz (+0/-.5dB) Monitor Output: 50-17,000Hz (-3dB) |
|---|---|
| Noise Level | Left & Right Channel: -119dBu (A weighted, Input Equivalent Level) |
| T.H.D. | less than 0.005% @ 1KHz (+10dBu output) |
| MIC Input Level | LO -21 dBu Gain +58dB max gain HI -5dBu Gain +42dB max gain |
| Monitor Output | 3.5mm Stereo: -4dBu (32 ohm load) (Recommended load 16-100 ohms) |
| Maximum Output Level | Balanced Output: +15dBu (5K ohms) Unbalanced Output (3.5mm): -20dBu (2K ohms) |
| Battery Type/Duration | 4-"AA" Alkaline - 15 hours |
| Current Drain | 77mA nominal (Phantom Power Off) 118mA maximum (Phantom Power On) |
| Phantom Power Voltage | 48VDC (+/- 1.5VDC) |
| Dimensions | 53.5(H) x 145(W) x 120(D) mm (2.19 x 5.70 x 4.75 inches) |
| Weight | 670g (23.58 oz) w/out battery |
