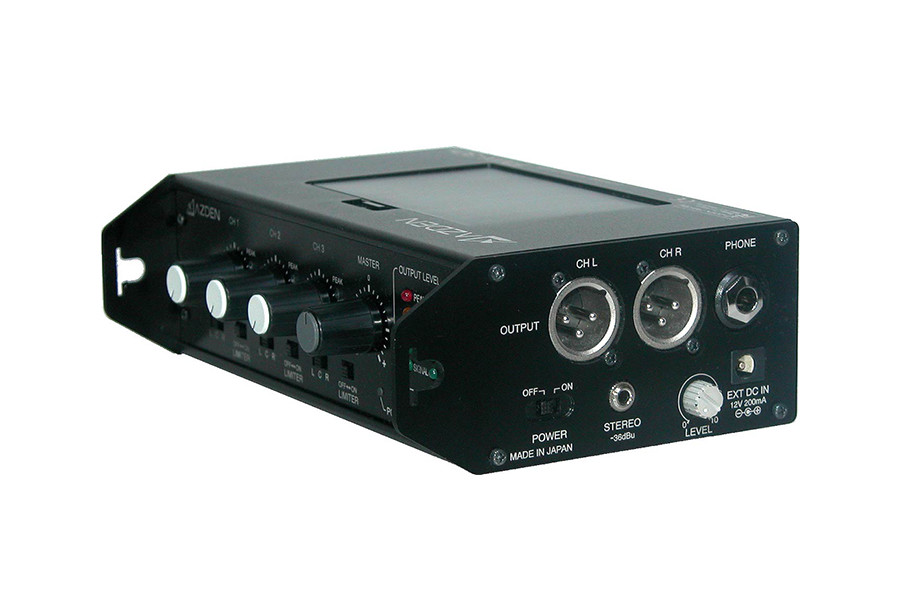

FMX-32a 3 Channel Portable Mixer

Prev

next

Feature

New and improved, the FMX-32a now uses the same circuit topology as the more expensive FMX-42 series mixers. With improved signal to noise ratio and wider frequency response the new FMX-32a is designed for the demanding needs of Professional Videographers. The small, all metal, battery operated (6-“AA”) mixer can be attached directly to the camera with supplied hook-and-loop fastener or neck worn with the optional FMX-32c carrying case. The FMX-32a has the following features: 3 XLR microphone inputs each with 2 input settings, 3 input level controls, master level control, switchable phantom power and limiters for each input, channel-addressable (L-C-R) Stereo XLR and mini outputs, 5-step LED array for easy signal monitoring, 12V DC input for external power (optional BC-27 power supply), and a 1/4″ monitor headphone jack with level control.

Specification

Frequency Response Main and Unbalanced Output: 20-20,000Hz (+0/-.5dB)
Monitor Output: 50-17,000Hz (-3dB)
Noise Level Left & Right Channel: -120dBu (A weighted, Input Equivalent Level)
T.H.D. less than 0.005% @ 1KHz (+10dBu output)
MIC Input Level LO -20 dBu Gain -6Db
HI -3dBu Gain +45Db
Monitor Output 3.5mm Stereo: -4dBu (32 ohm load)
(Recommended load 16-100 ohms)
Maximum Output Level Balanced Output:
+20dBu (5K ohms)
Unbalanced Output (3.5mm)
-19dBu (2K ohms)
Battery Type/Duration 6-"AA" Alkaline - 15 hours
Current Drain 47mA nominal (Phantom Power Off)
100mA maximum (Phantom Power On)
Phantom Power Voltage 48VDC (+/- 4VDC)
Dimensions 53.5(H) x 170(W) x 120(D) mm
(2.19 x 6.93 x 4.75 inches)
Weight 750g
(26.45 ounces)
w/out battery

Optional Accessories


BC-27
AC/DC Adapter
