FMX-42a 4Ch Portable Audio Mixer with return audio
Feature
Having 4 balanced XLR line/mic inputs with individual level and pan controls, the FMX-42a provides switchable (per channel) 48V phantom power and limiting, professional quality VU meters for accurate level setting, master level control, 1k tone generator, 2 balanced XLR outputs (line/mic switchable), stereo mini-jack output for DV cameras, 10-pin Camera Return, mini-jack Camera Return and a headphone monitor with level control.The FMX-42a can be powered by either 6 internal “AA” batteries or an optional 12V DC external supply (Locking 4-Pin Hirose connector). A ballistic nylon carrying case is included.
Specification
| Frequency Response | Balanced and Unbalanced Output: 20 Hz - 30 kHz (+0 / -1.5 dB) Monitor Out: 30 Hz - 30 kHz (+0 / -2 dB) |
|---|---|
| Signal-To-Noise | Balanced Output: -120 dBu (A weighted, Input Equivalent Level) |
| T.H.D. | Balanced Output: |
| Phantom Power Voltage | 48V (± 4V) |
| Sample Tone Freq. | 1 kHz |
| Battery Requirement / Runtime | 6 Alkaline “AA” Approx. 9 hours (Meter Illum. & Phantom Power OFF) |
| External Power | 12VDC @ 200 mA (10.5-17VDC - Locking 4-Pin Hirose Connector) |
| Current Drain | 164 mA (Meter Illum. & Phantom Power OFF - @ 9V) 192 mA (Meter Illum. OFF/Phantom Power ON w/1 mic@9V) 125mA (Meter Illum. & Phantom OFF @15V) |
| Dimensions | 56(H) x 220(W) x 160(D) mm (without protrusions) 2.25 x 9 x 6.5 inches (without protrusions) |
| Weight | 1350 g (w/o batteries) 3 lb (w/o batteries) |
| Balanced Input | XLR 3-pin Female x 4 (CH1, 2, 3 and 4) |
| Level | Line Input - Standard : +4 dBu (electronically balanced) - Maximum: > +26 dBu Mic 1 - Standard: -38 dBu (electronically balanced) - Maximum: +4 dBu Impedance: 2k ohm Mic 2 - Standard:-58 dBu (electronically balanced) - Maximum: -15 dBu Impedance: 2K ohm |
| High Pass Filter (HPF) | 100 Hz – 6 dB/oct |
| Return Inputs | Hirose 10-pin Female for Hirose Part #RM15TD-10P 3.5mm (1/8") Stereo Mini-jack |
| Input Level | -20 dBu - +19 dBu (unbalanced) Impedance: 11k ohm |

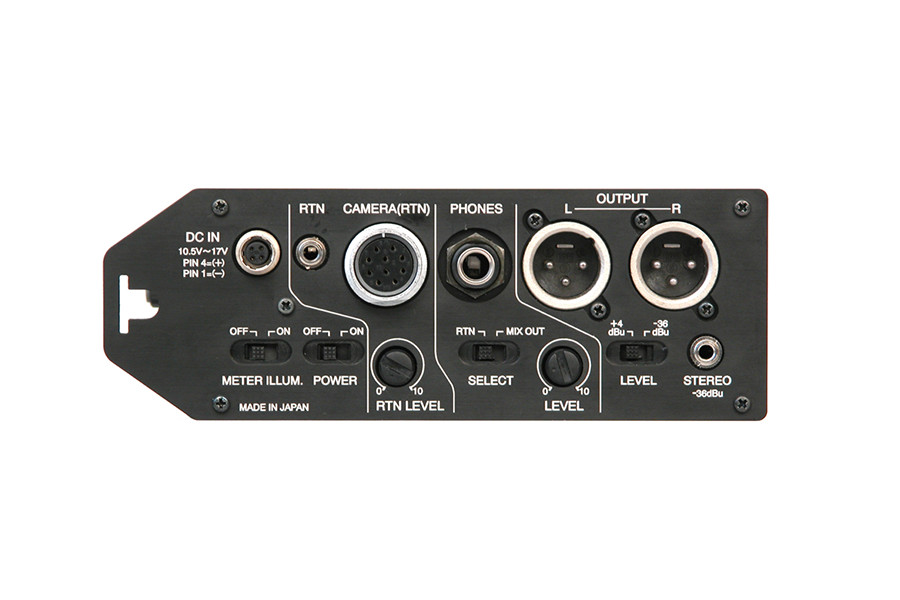

| Output | Balanced: XLR 3-pin x 2 (Output L and R), Hirose 10-pin Female Unbalanced: 3.5 mm Stereo Mini-jack Monitor: 6.3 mm Stereo jack |
| Electronically Balanced Output Level | Standard: +4 dBu (> 10 k ohm load) Maximum: +20 dBu (>10 k ohm load) Impedance: 600 ohm Standard: -36 dBu (> 10 k ohm load) Maximum: -20 dBu (>10 k ohm load) Impedance: 600 ohm |
| Unbalanced Output Level | Standard:-36 dBu (> 10 k ohm load) Maximum:-20 dBu (> 10 k ohm load) |
| Monitor Out | Max.: +1 dBu - 32 ohm @9V (16-100 ohm load recommended) |
| Meters | Standard Level: 0 VU (+4 dBu) |
Optional Accessories
BC-27(H)
AC/DC Adapter
ASP-20401
Carrying Bag for FMX-42/42a
