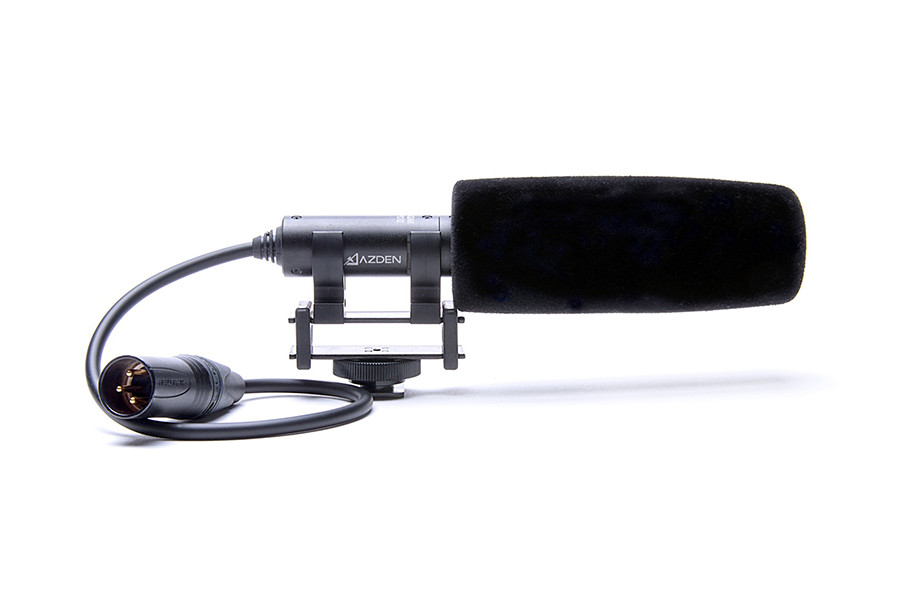

SGM-PDII Shotgun Microphone




Professional mini (150 mm) shotgun microphone with hard wired 3-pin XLR output cable. Works perfectly with broadcast and prosumer cameras that supply phantom power. Includes shock mount holder with shoe and flocked foam windscreen.
The Special Edition SGM-PDII is a high-performance shotgun microphone that operates via Phantom Power (11-52VDC) only. Designed to fit right into the microphone clamp/holder of today’s high performance cameras, the SGM-PDII offers the same directional, quality sound as the popular and highly rated SGM-PII. The main difference is the SGM-PDII has a hard wired output cable while the SGM-PII terminates with an XLR connector, allowing the use of any length high performance microphone cable. Both models offer super directional sound pick-up, wide response and low noise.


Mic Type Electret condenser microphone
Frequency Response 80 - 18,000 Hz
Directional pattern Supercardioid
Sensitivity -33dB at 1 kHz (0dB=1V/Pal)
Impedance 1.5k ohms
Max. SPL 120dB SPL (1 kHz at 1% THD)
Signal to Noise Ratio 70dB (1 kHz at 1% THD)
Power Phantom DC 11 ~ 52V
Current consumption 2.5mA
Connector type 3-pin XLR
Dimensions φ21 x 207 mm
Weight 90g w/cable
Supplied Accessories Shock mount holder(SMH-3), Windscreen
In The Box ・SGM-PDII Microphone
・Shock mount mic holder with extra support bands
・Flocked Foam Windscreen
・Zippered Carry Case
