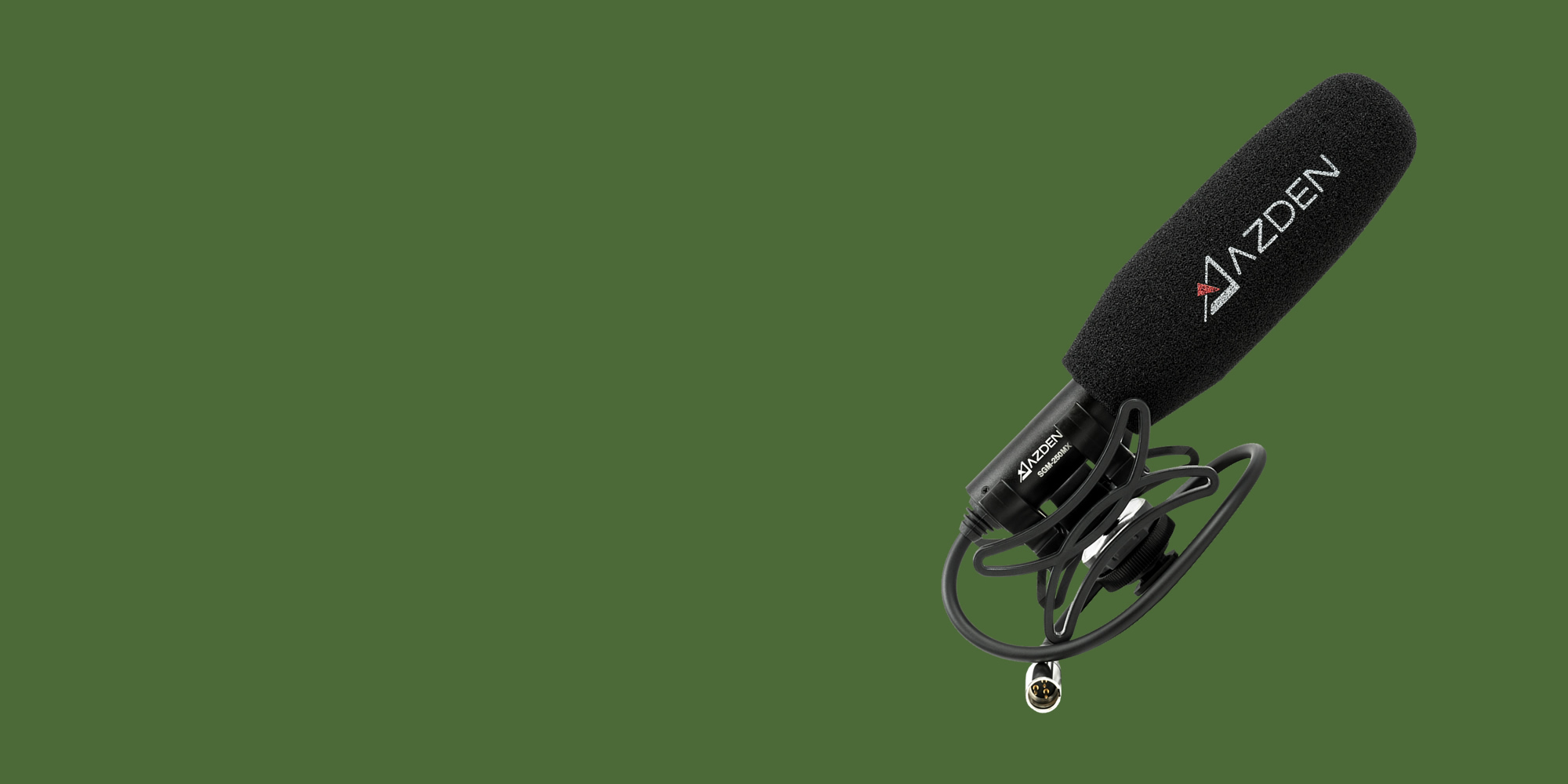

SGM-250MX
Professional Compact Mic with Mini-XLR
Direct Connection to Mini-XLR Camera Input

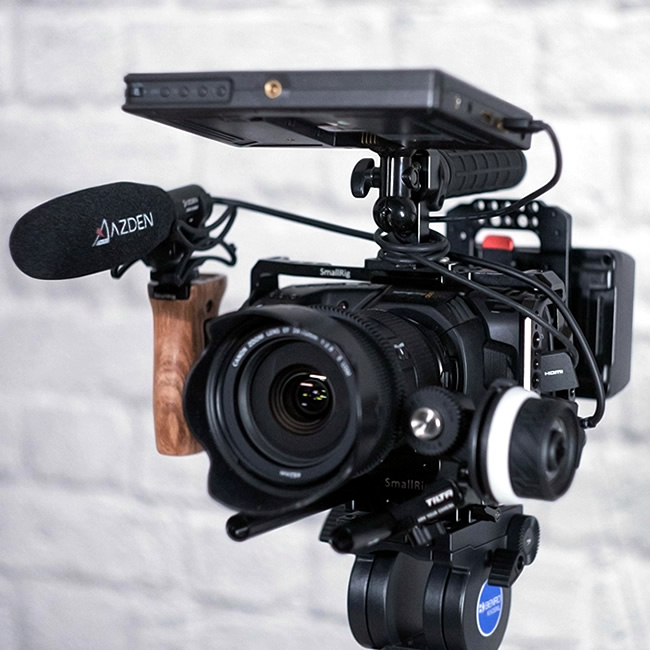

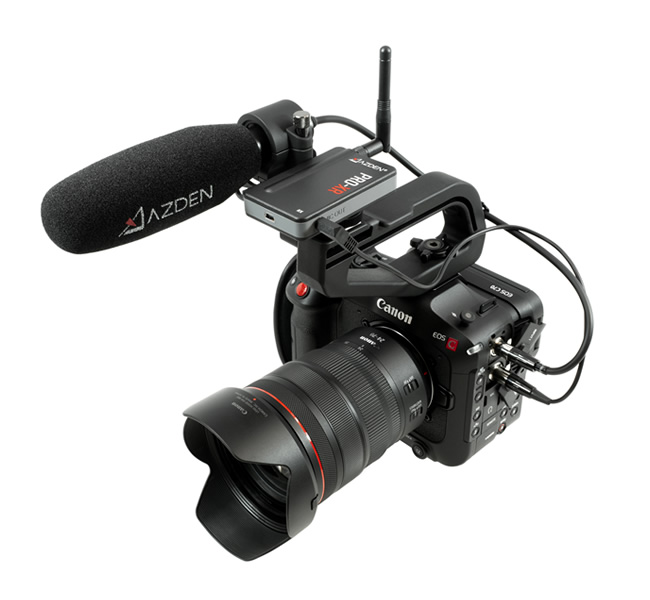

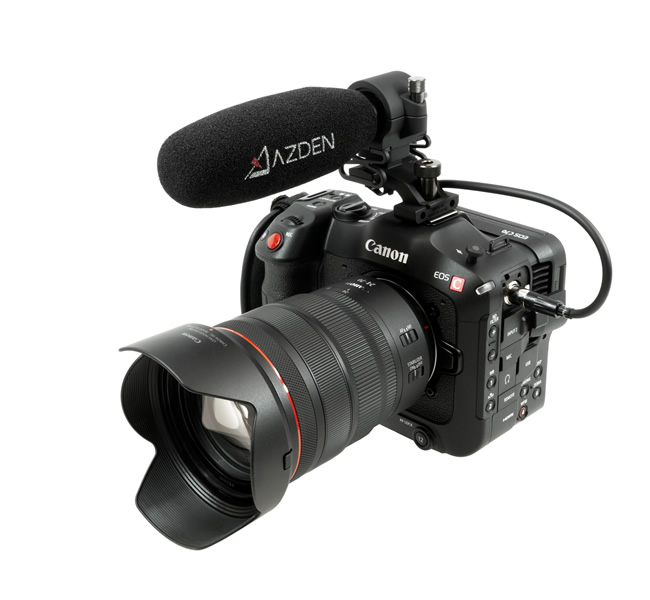

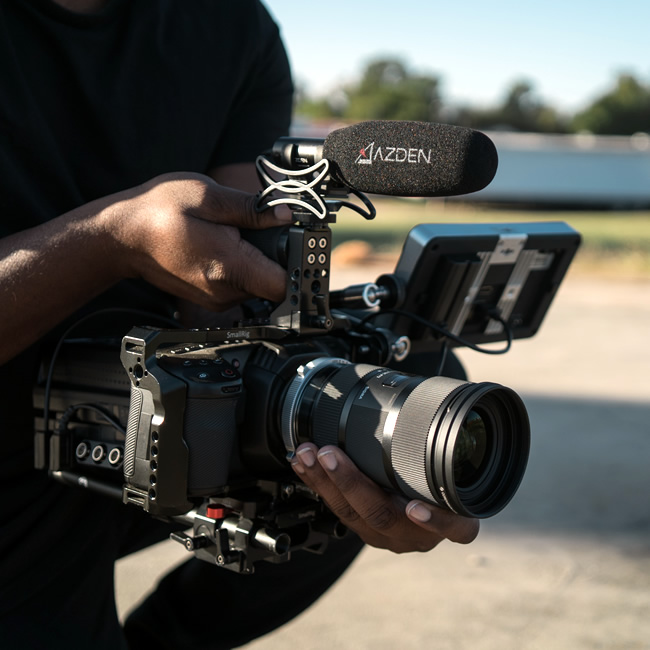

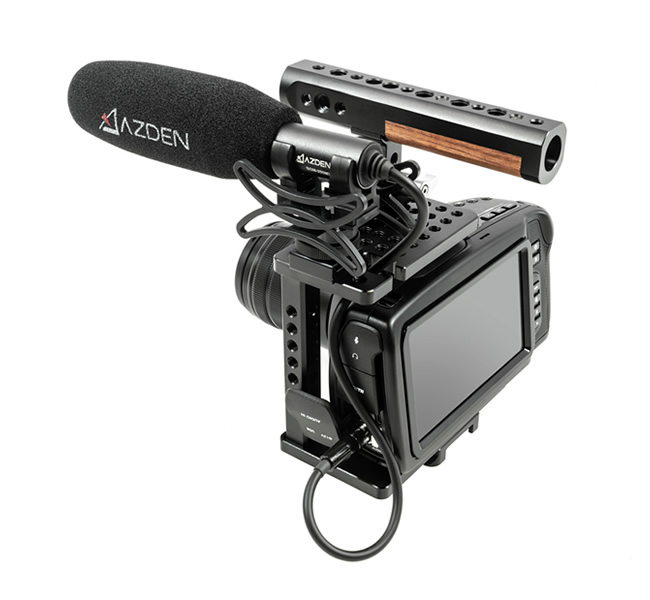

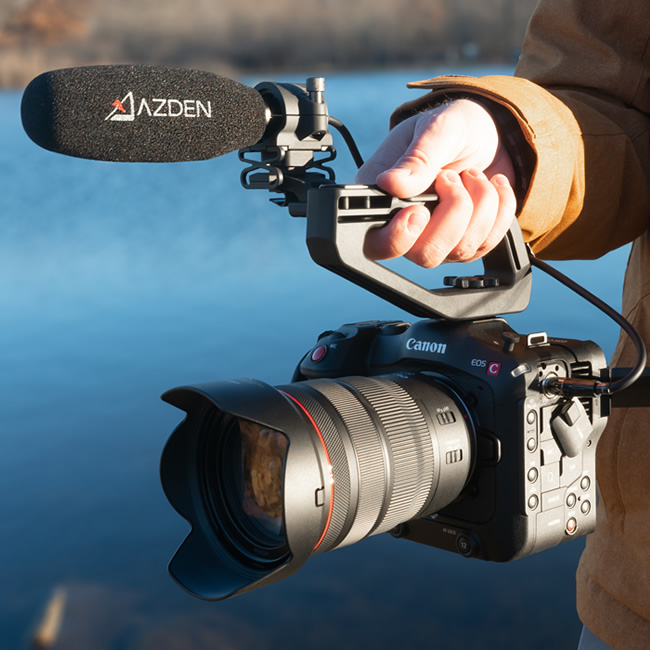

The SGM-250MX is a short length, condenser shotgun microphone that is perfect for cameras equipped with Mini-XLR adapters such as the Blackmagic Pocket Cinema Camera and Canon EOS C70. The microphone’s highly sensitive, condenser element is powered by standard 48V phantom power. The SGM-250MX has become notable in the industry for its natural, professional sound. Specifically tuned to preserve the natural qualities of a speaking subject.
Focused on Ease of Use

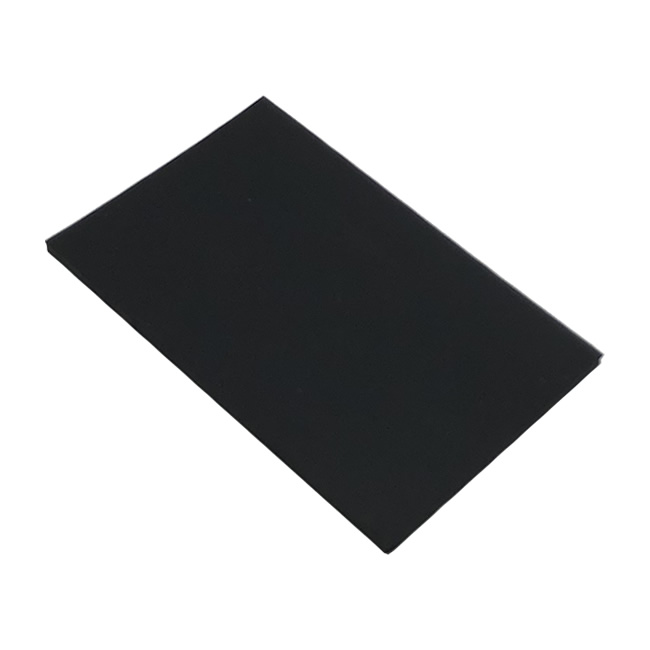

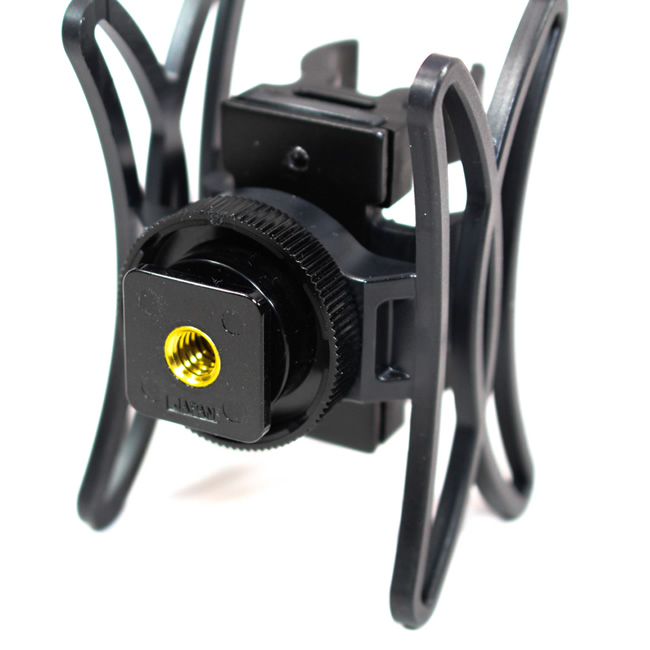

The SGM-250MX includes Azden’s SMH-X shock mount which mounts to standard size camera shoe slots, as well as 1/4”- 20 threaded mounts and tripods. Also included are diameter expander sheets for universal compatibility with ring-clamp style microphone mounts.
Specifications
- Mic Element
- Electret Condenser
- Frequency Response
- 20Hz - 20kHz
- Sensitivity
- Super Cardioid -33 dB at 1kHz (0dB = 1V/Pa)
- Impedance
- 100Ω (at 1kHz)
- Dynamic Range
- 112dB
- Max.Spl Input Level
- 130dB SPL. (1kHz at 1% T.H.D)
- Signal To Noise Ratio
- 76 dB (1kHz at 1Pa)
- Power
- Phantom 11-50V
- Dimensions
- φ21 mm x 153 mm
- Cable Length
- φ5 mm x 330 mm
- Weight
- 85 g
- Connector
- 3-pin Mini-XLR
- Supplied Accessories
- Shock mount holder, windscreen, carrying pouch, rubber sheets

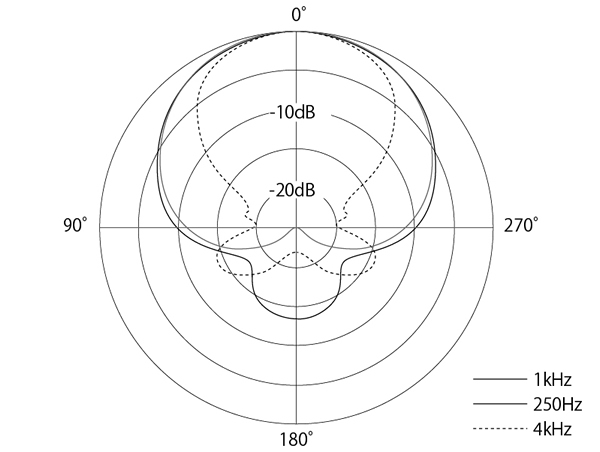

Polar pattern

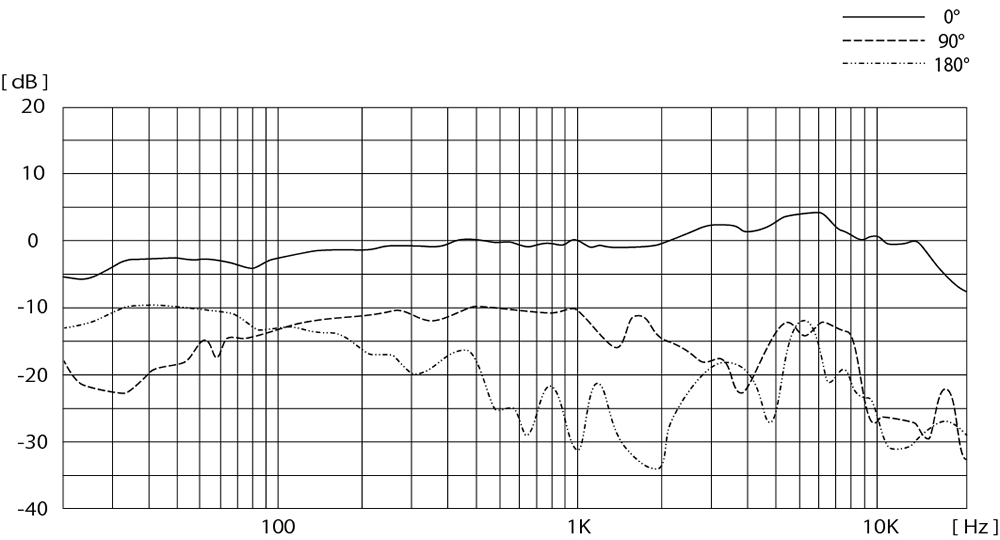

Frequency Response
